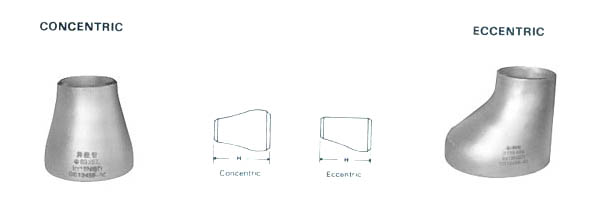

Reducer Fittings

Nom. Pipe Size mm Dia. Nominal		H	Nom. Pipe Size Dia. Nominal		H	Nom. Pipe Size Dia. Nominal		H
Lg. End	sm. End		Lg. End	sm. End		Lg. End	sm. End
20	10	38	90	32	102	250	100	178
	15	38		40	102		125	178
25	10	51		50	102		150	178
	15	51		65	102		200	178
	20	51		80	102	300	125	203
32	15	51	100	40	102		150	203
	20	51		50	102		200	203
	25	51		65	102		250	203
40	15	64		80	102	350	150	330
	20	64		90	102		200	330
	25	64	125	50	127		250	330
	32	64		65	127		300	330
50	20	76		80	127	400	200	356
	25	76		90	127		250	356
	32	76		100	127		300	356
	40	76	150	65	140		350	356
65	25	89		80	140	450	250	381
	32	89		90	140		300	381
	40	89		100	140		350	381
	50	89		125	140		400	381
80	32	89	200	90	152	500	300	508
	40	89		100	152		350	508
	50	89		125	152		400	508
	65	89		150	152		450	508
